Bezpośredni dystrybutor ISKRA-LETRIKA
| Nazwa | Wartość |
|---|---|

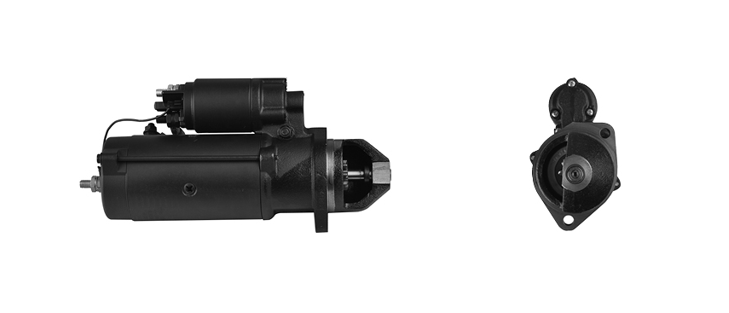

| Produkt | Starter |
| Napięcie | 24 V |
| Moc | 4.0 kW |
| Opis | AZF4222 |
| Liczba zębów | 9 |
| Moduł | 3 mm |
| Odstęp między zębami | 14.36 mm |
| Zewnętrzna średnica koła zębatego | 34.8 mm |
| Uwagi | Insulated ground |
| With reduction gear |
| Producent | Model | Silnik | Opis | Ltr | Rocznik |
|---|---|---|---|---|---|
| STEYR (STEYR-DAIMLER-PUCH AG) | ENGINES |
| Pos. | Spare part P/N |
|---|---|
| 1 | Drive end bracket
|
| 1 | MSX 1040 16.285.549 Drive end bracket
|
| 2 | MSX 684 15.120.243 Bearing
|
| 4 | MSX 1401 16.915.565 Switch
|
| 4 | Switch
|
| 6 | MSX 1045 16.912.048 Pinion with clutch
|
| 7 | MSX 1588 16.915.033 Lever
|
| 7 | Lever
|
| 8 | MSX 609 16.904.832 Reduction gear
|
| 9 | MSX 1247 16.908.993 Armature
|
| 10 | MSX 305 16.908.340 Bearing
|
| 11 | MSX 787 16.908.341 Fixing parts set
|
| 11 | MSX 1730 16.915.940 Fixing set
|
| 12 | MSX 1641 16.282.624 Stator
|
| 13 | MSX 878 16.907.476 Brush holder
|
| 13 | Brush holder
|
| 14 | MSX 1249 16.908.995 Set of brushes
|
| 15 | MSX 1031 15.132.913 Rear-end bracket
|
| 15 | Rear-end bracket
|
| Nazwa | Numer oryginalny | |
|---|---|---|
| LETRIKA (ISKRA) | 11.131.841 | |
| LETRIKA (ISKRA) | AZF4222 | |
| LETRIKA (ISKRA) | IS1282 | |
| MAHLE | MS36 |
| Dostawca | Dostępność |
|---|
