Bezpośredni dystrybutor ISKRA-LETRIKA
| Nazwa | Wartość |
|---|---|

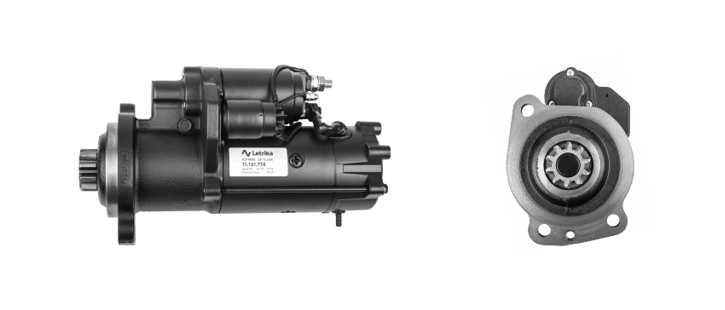

| Produkt | Starter |
| Napięcie | 24 V |
| Moc | 5.5 kW |
| Opis | AZF4680 |
| Liczba zębów | 10 |
| Moduł | 3.75 mm |
| Odstęp między zębami | 17.77 mm |
| Zewnętrzna średnica koła zębatego | 44.9 mm |
| Uwagi | Noseless version of starter |
| With reduction gear |
| Producent | Model | Silnik | Opis | Ltr | Rocznik |
|---|---|---|---|---|---|
| AUTODIZEL | ENGINES YaMZ 236 | YaMZ 236 | 11.2 | ||
| AUTODIZEL | ENGINES YaMZ 238 | Yamz 238 | 14.9 |
| Producent | Model | Silnik | Opis | Ltr | Rocznik |
|---|---|---|---|---|---|
| ROSTSELMASH | COMBINES ACROSS 530 | YaMZ 236 | 11.2 | ||
| ROSTSELMASH | COMBINES DON 1500 | YaMZ 236 | 11.2 | ||
| ROSTSELMASH | COMBINES DON 1500 | YaMZ 238 | 14.9 | ||
| ROSTSELMASH | COMBINES DON 680 | YaMZ 238 | 14.9 | ||
| ROSTSELMASH | COMBINES RSM 100 | YaMZ 238 | 14.9 | ||
| ROSTSELMASH | COMBINES RSM 142 | YaMZ 236 | 11.2 | ||
| ROSTSELMASH | COMBINES VECTOR 101 | YaNZ 236 | 11.0 | ||
| ROSTSELMASH | COMBINES VECTOR 410 | YaMZ 236 | 11.2 | ||
| ROSTSELMASH | COMBINES VECTOR 420 | YaMZ 236 | 11.2 | ||
| ROSTSELMASH | COMBINES VECTOR 450 | YaMZ 236 | 11.2 |
| Pos. | Spare part P/N |
|---|---|
| 1 | 16.285.486 MSX 986 Drive end bracket
|
| 2 | 16.907.209 MSX 275 Bearing
|
| 4 | 16.915.499 MSX 1599 Switch
|
| 5 | 16.915.500 MSX 1310 Supplementary switch
|
| 6 | 16.902.599 MSX 139 Pinion with clutch
|
| 7 | 16.907.429 MSX 701 Lever
|
| 8 | 16.902.782 MSX 1557 Reduction gear
|
| 9 | 16.907.431 MSX 703 Armature
|
| 10 | 16.908.340 MSX 305 Bearing
|
| 11 | 16.915.032 MSX 544 Fixing parts set
|
| 12 | 16.282.725 MSX 987 Stator
|
| 13 | 16.916.136 MSX 1134 Brush holder
|
| 14 | 16.916.137 MSX 1125 Set of brushes
|
| 15 | 16.285.402 MSX 99 Rear-end bracket
|
| 18 | 16.915.501 MSX 1556 Gear with clutch
|
| Nazwa | Numer oryginalny | |
|---|---|---|
| LETRIKA (ISKRA) | 11.131.774 | |
| LETRIKA (ISKRA) | AZF4680 | |
| LETRIKA (ISKRA) | IS1253 | |
| MAHLE | MS60 |
