Nazwa | Wartość |
---|---|
Napięcie | 24V |
Moc | 6.5 kW |
Liczba zębów | 12 |
Moduł | |
Odstęp między zębami | |
Zewnętrzna średnica koła zębatego | |
Uwagi | Gear reduction |

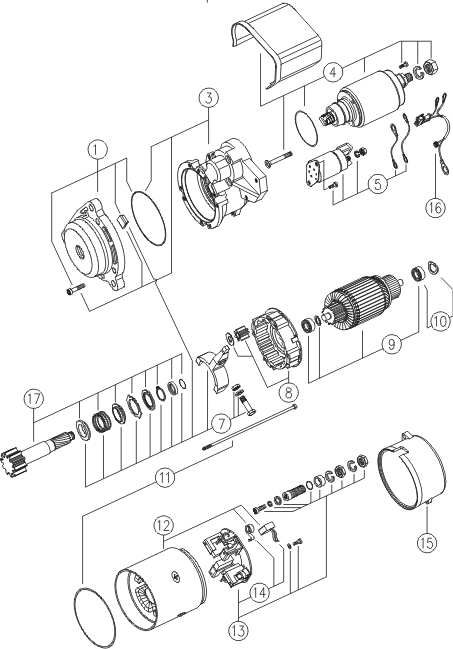

Pos. | Spare part P/N |
---|---|
1 | 16.915.258 Drive end bracket
|
3 | 16.915.259 Central cover
|
4 | 16.915.260 MSX 1046 Switch
|
5 | 16.915.257 MSX 1036 Additional switch
|
7 | 16.915.207 MSX 560 Lever
|
8 | 16.907.502 MSX 1308 Reduction gear
|
9 | 16.915.208 MSX 1748 Armature
|
10 | 16.915.209 MSX 561 Bearing
|
11 | 16.907.488 MSX 508 Fixing parts set
|
12 | 16.915.261 MSX 1047 Stator
|
13 | 16.915.262 MSX 1048 Brush holder
|
14 | 16.915.263 MSX 1049 Set of brushes
|
15 | 16.285.677 MSX 1017 Rear end bracket
|
17 | 16.915.911 MSX 1725 Pinion
|
Nazwa | Numer oryginalny | |
---|---|---|
LETRIKA (ISKRA) | 11.131.877 | |
LETRIKA (ISKRA) | AZG4684 | |
LETRIKA (ISKRA) | IS1240 |
