Bezpośredni dystrybutor ISKRA-LETRIKA
| Nazwa | Wartość |
|---|---|

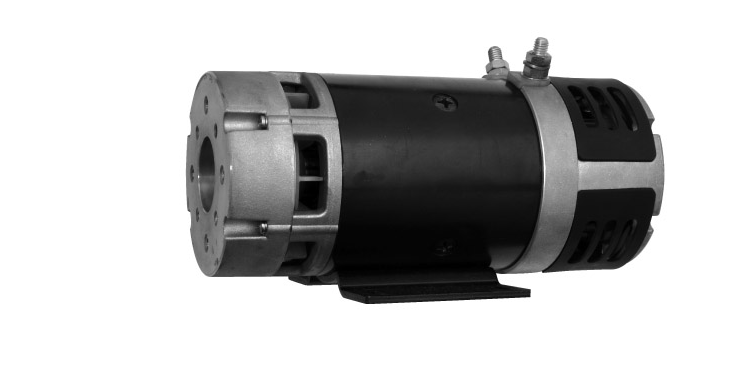

| Produkt | Motor |
| Napięcie | 24 V |
| Moc | 3.0 kW |
| Opis | AMK4679 |
| Obr. na min | 3,100/min |
| Rotacja | ⇒ |
| S1 | |
| S2 | 13 min |
| S3 | 28 %ED |
| Waga | 12.5 kg |
| Flansza | Customer design |
| Ochrona termiczna | No |
| Wentylowanie | Yes |
| Uwagi | Heavy duty |
| Ventilation |
| Producent | Model | Silnik | Opis | Ltr | Rocznik |
|---|---|---|---|---|---|
| CONCENTRIC (HALDEX) | |||||
| CONCENTRIC (HALDEX) | |||||
| CONCENTRIC (HALDEX) |
| Pos. | Spare part P/N |
|---|---|
| 1 | 16.283.233 MMX 239 Drive end bracket
|
| 2 | 16.908.546 MMX 886 Bearing
|
| 3 | 15.133.378 MMX 537 Central cover
|
| 4 | 16.361.547 MMX 666 Armature
|
| 5 | 16.907.608 MMX 790 Bearing
|
| 7 | 16.908.258 MMX 748 Screw
|
| 8 | 16.907.845 MMX 1117 Stator
|
| 10 | 16.908.530 MMX 200 Brush holder
|
| 11 | 16.908.260 MMX 546 Set of brushes
|
| 13 | 15.133.052 MMX 658 Rear end bracket
|
| 14 | 15.421.058 MMX 603 Fan
|
| 15 | 16.915.592 MMX 847 Protecting cover
|
| Nazwa | Numer oryginalny | |
|---|---|---|
| CONCENTRIC (HALDEX) | 2201122 | |
| LETRIKA (ISKRA) | 11.216.667 | |
| LETRIKA (ISKRA) | 11.216.788 | |
| LETRIKA (ISKRA) | 11.216.959 | |
| LETRIKA (ISKRA) | AMK4666 | |
| LETRIKA (ISKRA) | AMK4679 | |
| LETRIKA (ISKRA) | IM0310 | |
| MAHLE | MM29 |
| Dostawca | Dostępność |
|---|---|
| JKE |
